Stacking Doors

Contact US

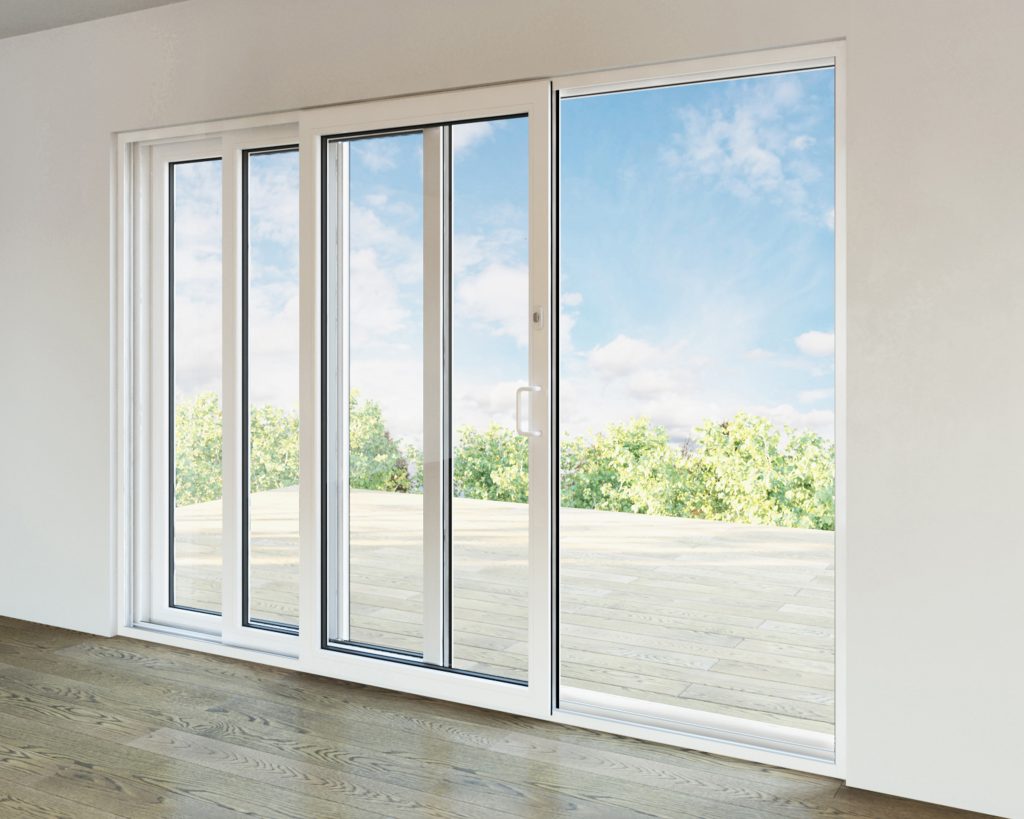

  • 170mm Frame Width
  • The Hamilton 170mm sliding door is available in two sill options. The first is a low profile 70mm and the second is a low profile 45mm.
  • The sill is hollow, with a built in baffle for better water, air and acoustic properties.
  • This low rail to sill design allows for stronger glass support and the large doors are fitted with double rollers for heavy duty use.
  • This low rail to sill design allows for stronger glass support and the large doors are fitted with double rollers for heavy duty use.

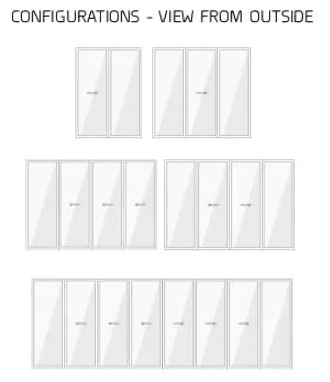

  • The Hamilton 170mm 2/3 opening design optimises wide open spaces without intruding into living or patio areas. It can also be flush fitted with drainage underneath the external decking
  • Common Color: Frosted Black, White Powder Coating
  • Woodland grey(​Gloss), Ironstone (​Gloss), Shale Grey (​Gloss)
  • Ultra Silver (Gloss), Dune (​Gloss), Paperbark (​Gloss), Primrose (Gloss)
  • White Birch (Gloss), Surfmist (​Gloss), Architectural White (​Gloss)
  • Pearl White (Gloss), Silver Pearl Kinetic (​Gloss), Black (​Gloss)
  • Monument (​Gloss), Clear, Residential Bronze
  • Customised colors to better match your home.
  • Laminated Glass (6.38mm)
  • Glass types: Frosted glass, Toughened glass, Low-e coated glass
  • Select from various types of glass
  • Special performance glass: Fireproof glass
  • Screen Types: Stainless Steel Mesh, Fiberglass Screen
  • Fly and insect screen is a great way to keep insects out of your home
  • Easy installation and removal
  • Keeps insects and bugs from entering your home
  • Durability, Airflow, and Visibility
  • Meets Australian standards
  • Australia Doric hardware
  • Innovative & premium quality door hardware
  • Award winning and market leading window hardware
  • D​​esigned to meet Australian safety standards
  • Provides reliable protection while enhancing the look of your home or business
  • Balancing Security and Aesthetics
  • Durability and Style Combined

Specifications

S​tructural performance (up to)
Serviceability Limit State Wind Pressure: 3000Pa max
Ultimate Limit State Wind Pressure: 6000Pa max
Water Penetration Resistance Pressure: 450Pa

Max maximum recommended size (up to)
Height: 2700mm
Width: 1500mm (sash width)

Glazing Maximum Thickness (up to)
Single Glazed: 6.38mm
Double Glazed: 22mm

Acoustics (up to)
Sliding Door: RW (C:Ctr): Up to 47 (-1:-7)
